Azure Outdoor LED Floodlight 100W-960W
Key Features:
- Range from 100W – 960W: 100W / 150W / 200W / 240W / 300W / 400W / 480W / 600W / 800W / 960W.
- LED Flood light built with Meanwell driver and Lumileds LEDs.
- Floodlight lamp system luminous Efficiency up to 150 lm/w.

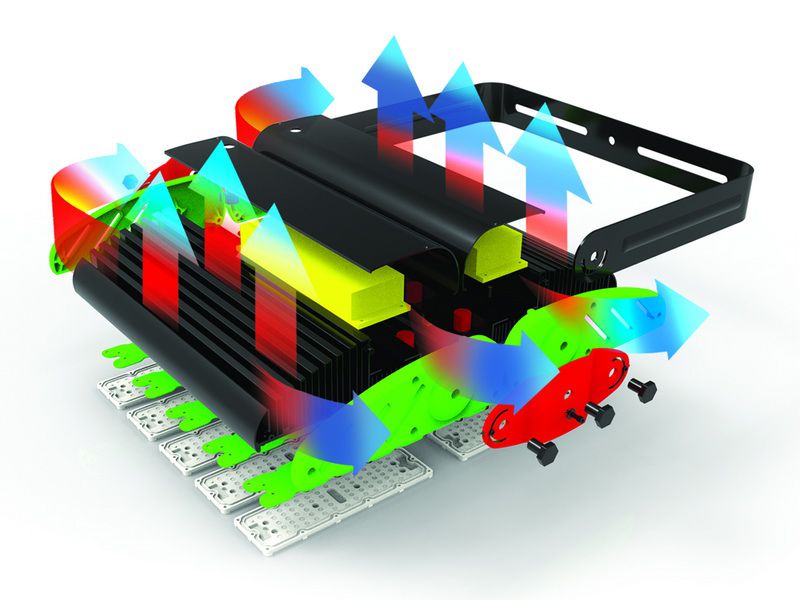

- 6063 aluminum cooling system to ensure the stable working of core components.
- AkzoNobel Painting for a maximum of 25 years of protection, super anti-corrosion.
- Narrowband wide wave technology applied for bird roost lighting project.
- IP67 / IK10.
- CCT: 2700-5700 K.
- CRI>80.
- TV broadcasting Floodlighting.
Azure Series Outdoor LED Sports Floodlight
The Azure series outdoor LED floodlight has been designed to meet the requirements of a wide range of high mast floodlighting projects.
The Azure Series Outdoor LED Floodlight has all the necessary control features and interfaces of a smart lighting system. It is built with high-output optics and LEDs, offering a coefficient replacement solution to traditional halogen floodlight projects and newly planned lighting projects. It has been proven to be an effective solution in a number of high-profile lighting projects, including those for the 2018 Asian Games, European boats, British bird roosts, Asian wharves, Italian rugby, and Australian sports clubs.
The Azure Series Outdoor LED Floodlight Offers a Comprehensive Range of Features and Benefits.
Low initial cost
Low energy management cost
Easy installation & maintenance
5 Years of product warranty
FREE Lighting Calculation
The Azure Series Outdoor LED Floodlights Are The Optimal Choice For an Outdoor Lighting System.
If you require a professional outdoor lighting solution for yards, tennis courts, basketball fields, soccer fields, parliament MUGA fields, rugby fields, cricket fields, baseball fields, school playgrounds, ports, ships, stadiums, cranes, or other open areas, we can provide the best solution.
We will provide you with a Free Lighting Calculation and installation guidance.
Product Specifications
Azure Series LED Floodlights
| LED Type | Lumileds/ Cree | Junction Temperature (Tj) | < 75 ℃ (Ta=30 ℃) |
| Driver | Meanwell Driver | Controls System | 0-10V Dimmable & DALI |
| Power | 960 W | Options | Up-20KA Surge Protection |
| Luminaire Efficacy | 150 lm/w | Optics | 8°/15°/30°/60°/90°/120°/80*150° |
| Luminous Flux | 144000 lm | Material | Aluminum Housing, A3/A4 Steel bracket, Polycarbonate Lenses |
| Correlated Color Temperature | 2700-6500 K | Remarks | CE RoHS SAA RCM |
| CRI | Ra 70/80/90 optional | Ingress Protection Code | IP 67 |
| Operating Temperature Range | -40℃ to 50℃ | Mechanical Impact Protection Code | IK10 |
| Mains Voltage | 90～305V AC 50-60Hz | Dimensions | L855*W87*H595mm |
| Output Voltage | DC 30-48 V | Warranty | 5 Years |
| Output Current | 3.0 A | Net Weight | 35.00 KG |
| Power Efficiency | 95% | Color | Black/White/Grey |
| Total Harmonic Distortion | < 15% |
| LED Type: | Lumileds/ Cree | Junction Temperature (Tj): | < 75 ℃ (Ta=30 ℃) |
| Driver: | Meanwell Driver | Controls System: | 0-10V Dimmable & DALI |
| Power: | 800 W | Options: | Up-20KA Surge Protection |
| Luminaire Efficacy: | 150 lm/w | Optics: | 8°/15°/30°/60°/90°/120°/80*150° |
| Luminous Flux: | 120,000 lm | Material: | Aluminum Housing, A3/A4 Steel bracket, Polycarbonate Lenses |
| Correlated Color Temperature: | 2700-6500 K | Remarks: | CE RoHS SAA RCM |
| CRI: | Ra 70/80/90 optional | Ingress protection code: | IP 67 |
| Operating Temperature Range: | -40℃ to 50℃ | Mech. impact protection code: | IK10 |
| Mains Voltage: | 90～305V AC 50-60Hz | Dimensions: | L705*W87*H595mm |
| Output Voltage: | DC 30-48 V | Warranty: | 5 Years |
| Output Currency: | 3.0 A | Net Weight: | 28.00 KG |
| Power Efficiency: | 95% | Color: | Black/White/Grey |
| Total Harmonic Distortion: | < 15% |
| LED Type: | Lumileds/ Cree | Junction Temperature (Tj): | < 75 ℃ (Ta=30 ℃) |
| Driver: | Meanwell Driver | Controls System: | 0-10V Dimmable & DALI |
| Power: | 600 W | Options: | Up-20KA Surge Protection |
| Luminaire Efficacy: | 150 lm/w | Optics: | 8°/15°/30°/60°/90°/120°/80*150° |
| Luminous Flux: | 90000 lm | Material: | Aluminum Housing, A3/A4 Steel bracket, Polycarbonate Lenses |
| Correlated Color Temperature: | 2700-6500 K | Remarks: | CE RoHS SAA RCM |
| CRI: | Ra 70/80/90 optional | Ingress protection code: | IP 67 |
| Operating Temperature Range: | -40℃ to 50℃ | Mech. impact protection code: | IK10 |
| Mains Voltage: | 90～305V AC 50-60Hz | Dimensions: | L550*W87*H595mm |
| Output Voltage: | DC 30-48 V | Warranty: | 5 Years |
| Output Currency: | 3.0 A | Net Weight: | 23.00 KG |
| Power Efficiency: | 95% | Color: | Black/White/Grey |
| Total Harmonic Distortion: | < 15% |
| LED Type: | Lumileds/ Cree | Junction Temperature (Tj): | < 75 ℃ (Ta=30 ℃) |
| Driver: | Meanwell Driver | Controls System: | 0-10V Dimmable & DALI |
| Power: | 480 W | Options: | Up-20KA Surge Protection |
| Luminaire Efficacy: | 150 lm/w | Optics: | 8°/15°/30°/60°/90°/120°/80*150° |
| Luminous Flux: | 72000 lm | Material: | Aluminum Housing, A3/A4 Steel bracket, Polycarbonate Lenses |
| Correlated Color Temperature: | 2700-6500 K | Remarks: | CE RoHS SAA RCM |
| CRI: | Ra 70/80/90 optional | Ingress protection code: | IP 67 |
| Operating Temperature Range: | -40℃ to 50℃ | Mech. impact protection code: | IK10 |
| Mains Voltage: | 90～305V AC 50-60Hz | Dimensions: | L475*W87*H595mm |
| Output Voltage: | DC 30-48 V | Warranty: | 5 Years |
| Output Currency: | 3.0 A | Net Weight: | 20.00 KG |
| Power Efficiency: | 95% | Color: | Black/White/Grey |
| Total Harmonic Distortion: | < 15% |
| LED Type: | Lumileds/ Cree | Junction Temperature (Tj): | < 75 ℃ (Ta=30 ℃) |
| Driver: | Meanwell Driver | Controls System: | 0-10V Dimmable & DALI |
| Power: | 400 W | Options: | Up-20KA Surge Protection |
| Luminaire Efficacy: | 150 lm/w | Optics: | 8°/15°/30°/60°/90°/120°/80*150° |
| Luminous Flux: | 60000 lm | Material: | Aluminum Housing, A3/A4 Steel bracket, Polycarbonate Lenses |
| Correlated Color Temperature: | 2700-6500 K | Remarks: | CE RoHS SAA RCM |
| CRI: | Ra 70/80/90 optional | Ingress protection code: | IP 67 |
| Operating Temperature Range: | -40℃ to 50℃ | Mech. impact protection code: | IK10 |
| Mains Voltage: | 90～305V AC 50-60Hz | Dimensions: | L400*W87*H595mm |
| Output Voltage: | DC 30-48 V | Warranty: | 5 Years |
| Output Currency: | 3.0 A | Net Weight: | 16.00 KG |
| Power Efficiency: | 95% | Color: | Black/White/Grey |
| Total Harmonic Distortion: | < 15% |
| LED Type: | Lumileds/ Cree | Junction Temperature (Tj): | < 75 ℃ (Ta=30 ℃) |
| Driver: | Meanwell Driver | Controls System: | 0-10V Dimmable & DALI |
| Power: | 300 W | Options: | Up-20KA Surge Protection |
| Luminaire Efficacy: | 150 lm/w | Optics: | 8°/15°/30°/60°/90°/120°/80*150° |
| Luminous Flux: | 45000 lm | Material: | Aluminum Housing, A3/A4 Steel bracket, Polycarbonate Lenses |
| Correlated Color Temperature: | 2700-6500 K | Remarks: | CE RoHS SAA RCM |
| CRI: | Ra 70/80/90 optional | Ingress protection code: | IP 67 |
| Operating Temperature Range: | -40℃ to 50℃ | Mech. impact protection code: | IK10 |
| Mains Voltage: | 90～305V AC 50-60Hz | Dimensions: | L510*W87*H315mm |
| Output Voltage: | DC 30-48 V | Warranty: | 5 Years |
| Output Currency: | 3.0 A | Net Weight: | 11.00 KG |
| Power Efficiency: | 95% | Color: | Black/White/Grey |
| Total Harmonic Distortion: | < 15% |
| LED Type: | Lumileds/ Cree | Junction Temperature (Tj): | < 75 ℃ (Ta=30 ℃) |
| Driver: | Meanwell Driver | Controls System: | 0-10V Dimmable & DALI |
| Power: | 240 W | Options: | Up-20KA Surge Protection |
| Luminaire Efficacy: | 150 lm/w | Optics: | 8°/15°/30°/60°/90°/120°/80*150° |
| Luminous Flux: | 36000 lm | Material: | Aluminum Housing, A3/A4 Steel bracket, Polycarbonate Lenses |
| Correlated Color Temperature: | 2700-6500 K | Remarks: | CE RoHS SAA RCM |
| CRI: | Ra 70/80/90 optional | Ingress protection code: | IP 67 |
| Operating Temperature Range: | -40℃ to 50℃ | Mech. impact protection code: | IK10 |
| Mains Voltage: | 90～305V AC 50-60Hz | Dimensions: | L435*W87*H315mm |
| Output Voltage: | DC 30-48 V | Warranty: | 5 Years |
| Output Currency: | 3.0 A | Net Weight: | 8.50 KG |
| Power Efficiency: | 95% | Color: | Black/White/Grey |
| Total Harmonic Distortion: | < 15% |
| LED Type: | Lumileds/ Cree | Junction Temperature (Tj): | < 75 ℃ (Ta=30 ℃) |
| Driver: | Meanwell Driver | Controls System: | 0-10V Dimmable & DALI |
| Power: | 200 W | Options: | Up-20KA Surge Protection |
| Luminaire Efficacy: | 150 lm/w | Optics: | 8°/15°/30°/60°/90°/120°/80*150° |
| Luminous Flux: | 30000 lm | Material: | Aluminum Housing, A3/A4 Steel bracket, Polycarbonate Lenses |
| Correlated Color Temperature: | 2700-6500 K | Remarks: | CE RoHS SAA RCM |
| CRI: | Ra 70/80/90 optional | Ingress protection code: | IP 67 |
| Operating Temperature Range: | -40℃ to 50℃ | Mech. impact protection code: | IK10 |
| Mains Voltage: | 90～305V AC 50-60Hz | Dimensions: | L360*W87*H315mm |
| Output Voltage: | DC 30-48 V | Warranty: | 5 Years |
| Output Currency: | 3.0 A | Net Weight: | 6.50 KG |
| Power Efficiency: | 95% | Color: | Black/White/Grey |
| Total Harmonic Distortion: | < 15% |
| LED Type: | Lumileds/ Cree | Junction Temperature (Tj): | < 75 ℃ (Ta=30 ℃) |
| Driver: | Meanwell Driver | Controls System: | 0-10V Dimmable & DALI |
| Power: | 150 W | Options: | Up-20KA Surge Protection |
| Luminaire Efficacy: | 150 lm/w | Optics: | 8°/15°/30°/60°/90°/120°/80*150° |
| Luminous Flux: | 22500 lm | Material: | Aluminum Housing, A3/A4 Steel bracket, Polycarbonate Lenses |
| Correlated Color Temperature: | 2700-6500 K | Remarks: | CE RoHS SAA RCM |
| CRI: | Ra 70/80/90 optional | Ingress protection code: | IP 67 |
| Operating Temperature Range: | -40℃ to 50℃ | Mech. impact protection code: | IK10 |
| Mains Voltage: | 90～305V AC 50-60Hz | Dimensions: | L285*W87*H315mm |
| Output Voltage: | DC 30-48 V | Warranty: | 5 Years |
| Output Currency: | 3.0 A | Net Weight: | 5.00 KG |
| Power Efficiency: | 95% | Color: | Black/White/Grey |
| Total Harmonic Distortion: | < 15% |
| LED Type: | Lumileds/ Cree | Junction Temperature (Tj): | < 75 ℃ (Ta=30 ℃) |
| Driver: | Meanwell Driver | Controls System: | 0-10V Dimmable & DALI |
| Power: | 100 W | Options: | Up-20KA Surge Protection |
| Luminaire Efficacy: | 150 lm/w | Optics: | 8°/15°/30°/60°/90°/120°/80*150° |
| Luminous Flux: | 15000 lm | Material: | Aluminum Housing, A3/A4 Steel bracket, Polycarbonate Lenses |
| Correlated Color Temperature: | 2700-6500 K | Remarks: | CE RoHS SAA RCM |
| CRI: | Ra 70/80/90 optional | Ingress protection code: | IP 67 |
| Operating Temperature Range: | -40℃ to 50℃ | Mech. impact protection code: | IK10 |
| Mains Voltage: | 90～305V AC 50-60Hz | Dimensions: | L205*W87*H315mm |
| Output Voltage: | DC 30-48 V | Warranty: | 5 Years |
| Output Currency: | 3.0 A | Net Weight: | 4.20 KG |
| Power Efficiency: | 95% | Color: | Black/White/Grey |
| Total Harmonic Distortion: | < 15% |
